Stage 01
Crystal Growth & Orientation
Crystal growth, material selection and crystallographic orientation support application-specific cuts and downstream processing.
Home / Capabilities
MANUFACTURING & PROCESSING
From Crystal Growth to Custom Components
An integrated manufacturing and processing platform supports crystal growth, orientation, precision machining, surface finishing, electrode preparation and electrical characterization.
Crystal GrowthPrecision MachiningElectrode DepositionPrototype to Production
Representative crystal forms and processed component photography
Visual Snapshot
Key stages across the process flow
These visuals help communicate the range from as-grown boules through machined wafers, bars and application-ready components.
Stage 02

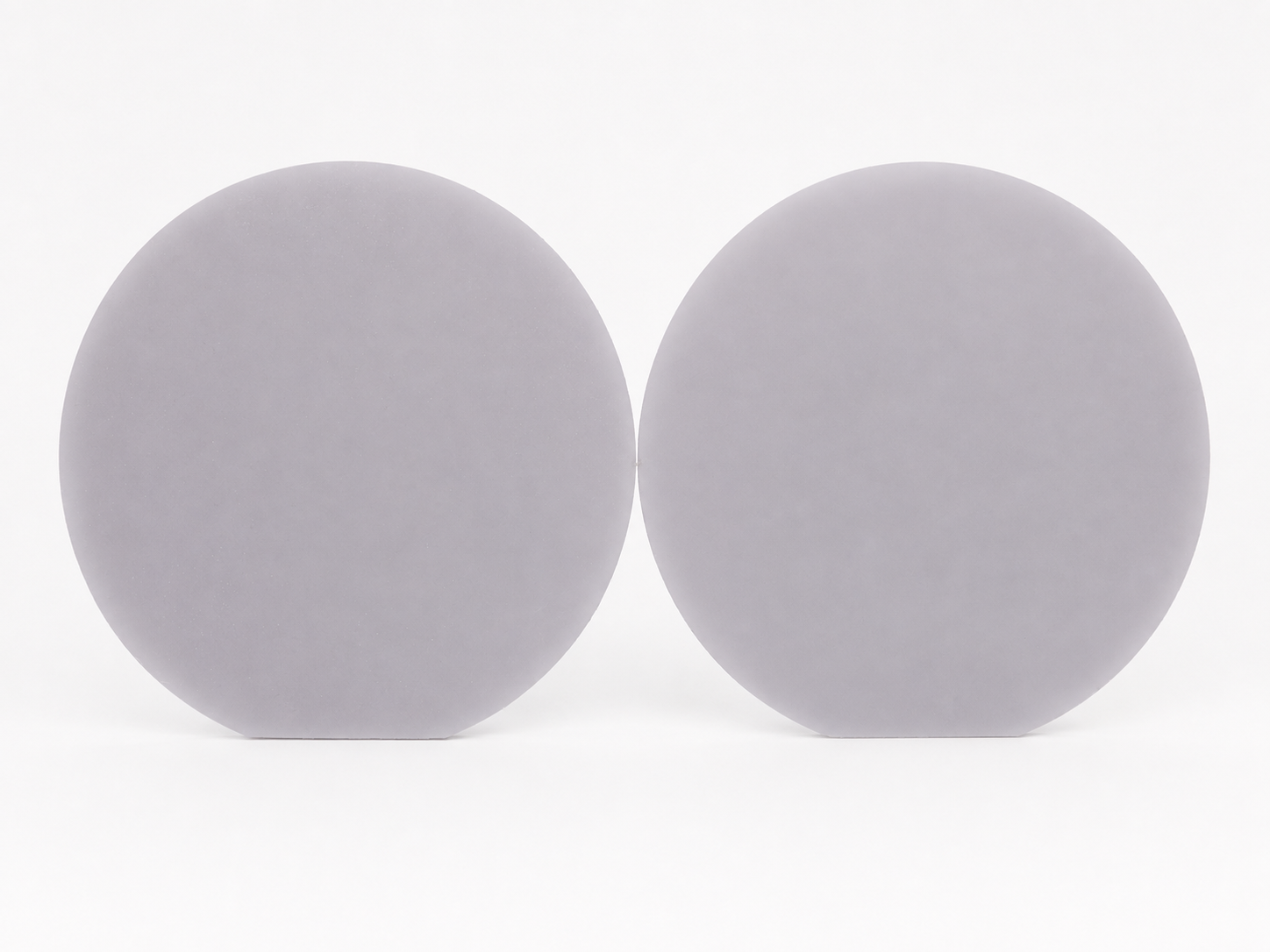

Wafering, Slicing & Surface Finishing
Precision slicing, grinding, lapping and polishing support wafers, plates, rings and custom component geometries.
Stage 03
Custom Components & Scale-Up
Move from prototype quantities into recurring production using the same material platform and controlled processing routes.
How we support programs
Integrated support for development and manufacturing
The capabilities stack is designed to bridge R&D programs, pilot builds and scalable manufacturing. Teams can start with custom material and geometry discussions, then move toward repeatable production workflows once specifications are frozen.
A
Prototype flexibilitySupport for material evaluation, small-batch builds and custom geometry requests.
B
Process continuityThe same technical team can advise on orientation, dimensioning, finishing and electrode decisions.
C
Production readinessQualified processes can transition into stable recurring orders for commercial programs.
Illustrative view of representative crystal forms and processing outputs
Crystal Growth
Large-scale relaxor-based piezoelectric single-crystal production.
Chemical Preparation
Batch preparation and material processing supporting crystal growth.
Crystal Orientation
Crystallographic orientation for application-specific cuts.
Slicing
Precision slicing for wafers, plates and component blanks.
Grinding & Lapping
Dimensional processing and surface preparation.
Polishing
Polished surfaces based on component requirements.
Electrode Deposition
Silver, gold and specification-driven electrode preparation.
RIE
Reactive ion etching capability for applicable component processes.
Electrical Testing
Electrical characterization and quality-control review.
Prototype Builds
Flexible support for R&D and product-development quantities.
Volume Production
Scale qualified designs into recurring production quantities.
Technical Review
Application and specification review with the crystal technical team.
One supplier from prototype through production.
The same material and processing platform can support early development, qualification and later production scaling.
