Plates & Wafers
Rectangular or square single-crystal components with custom length, width and thickness.
Home / Components
CRYSTAL FORMS & COMPONENTS
Specify the Geometry
Select a material family, cut configuration, component geometry, surface finish and electrode requirement for technical review.

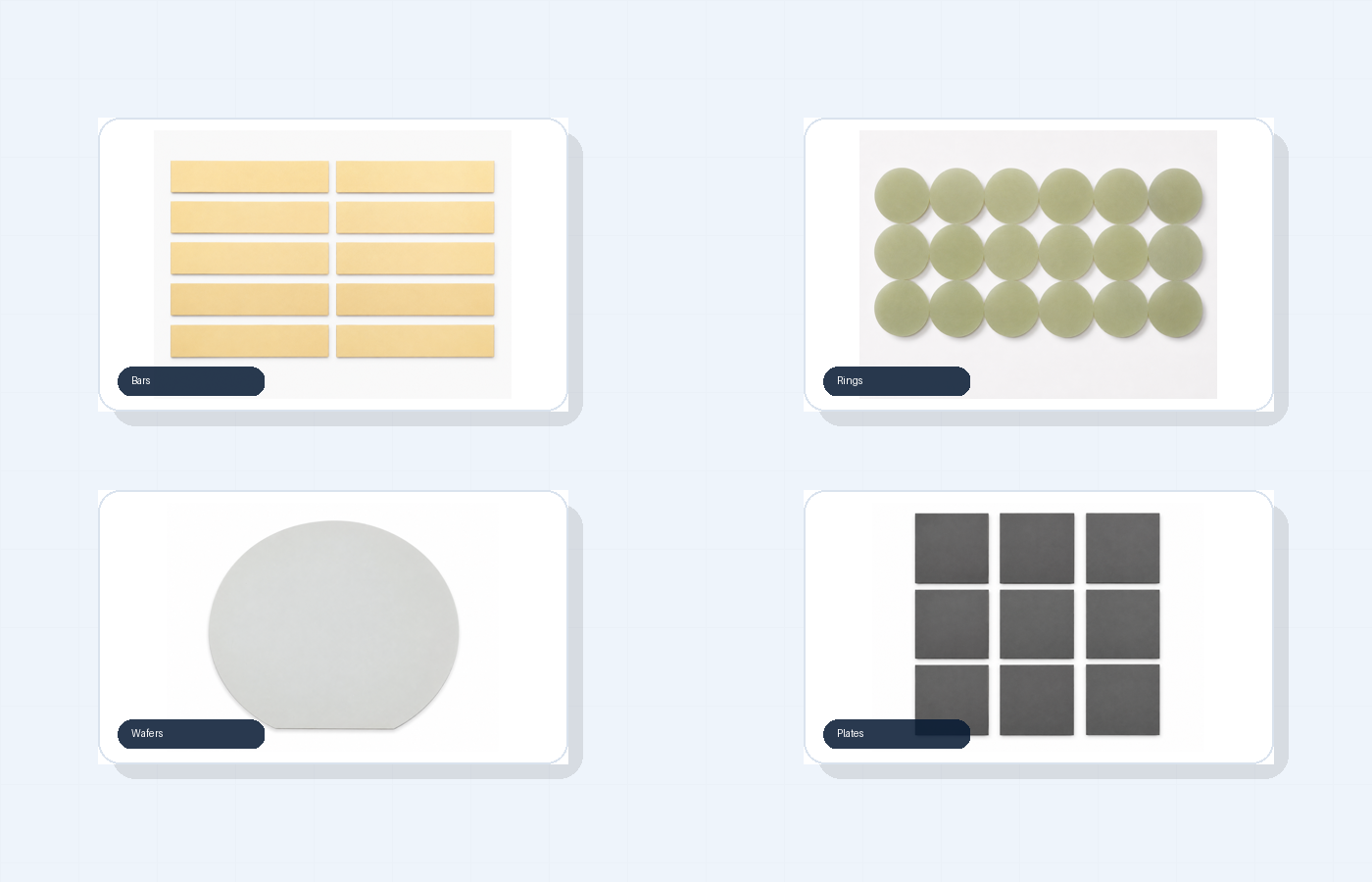

Refined sample component images

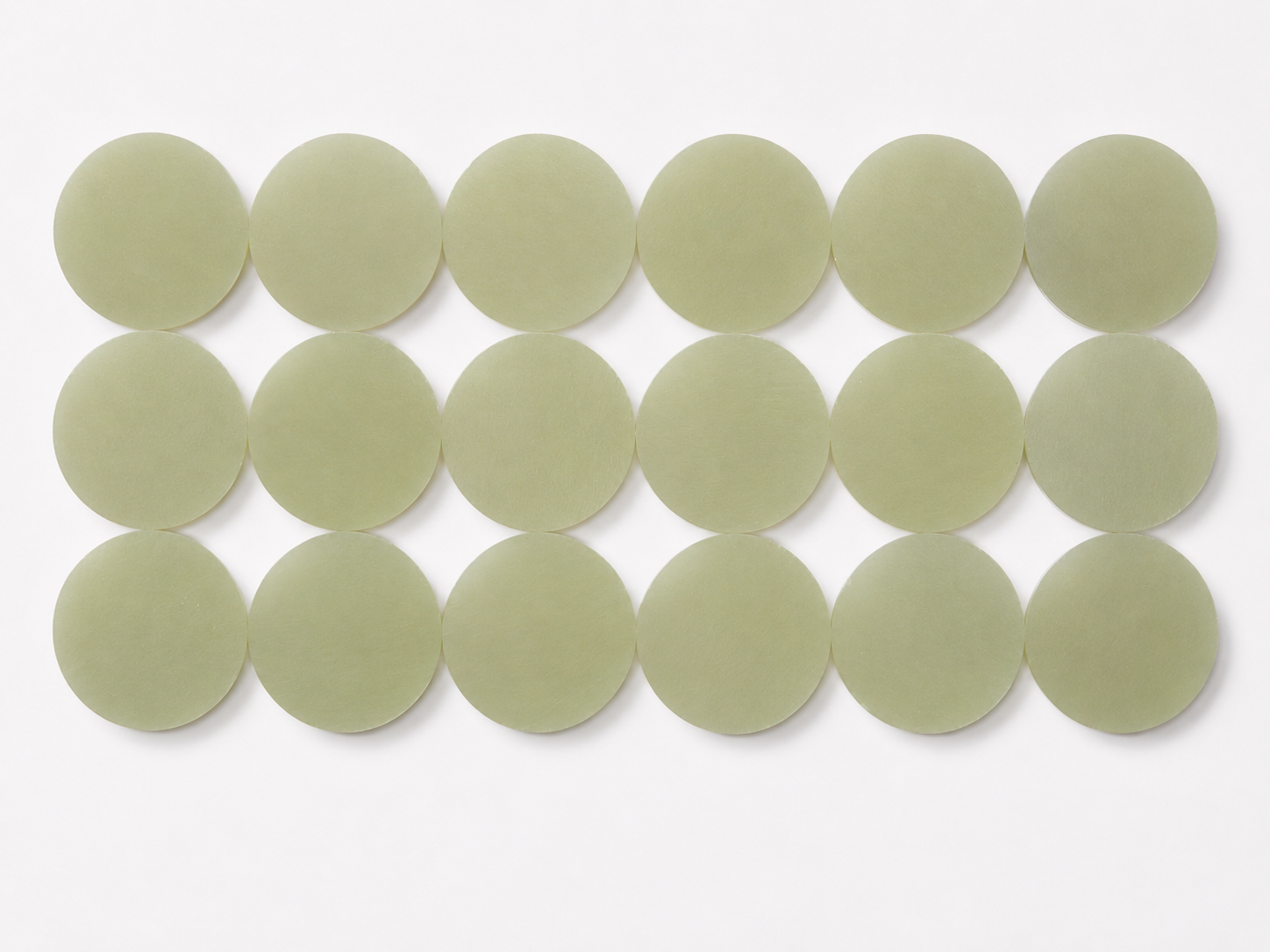

Rings
Custom outer diameter, inner diameter and thickness based on drawing review.

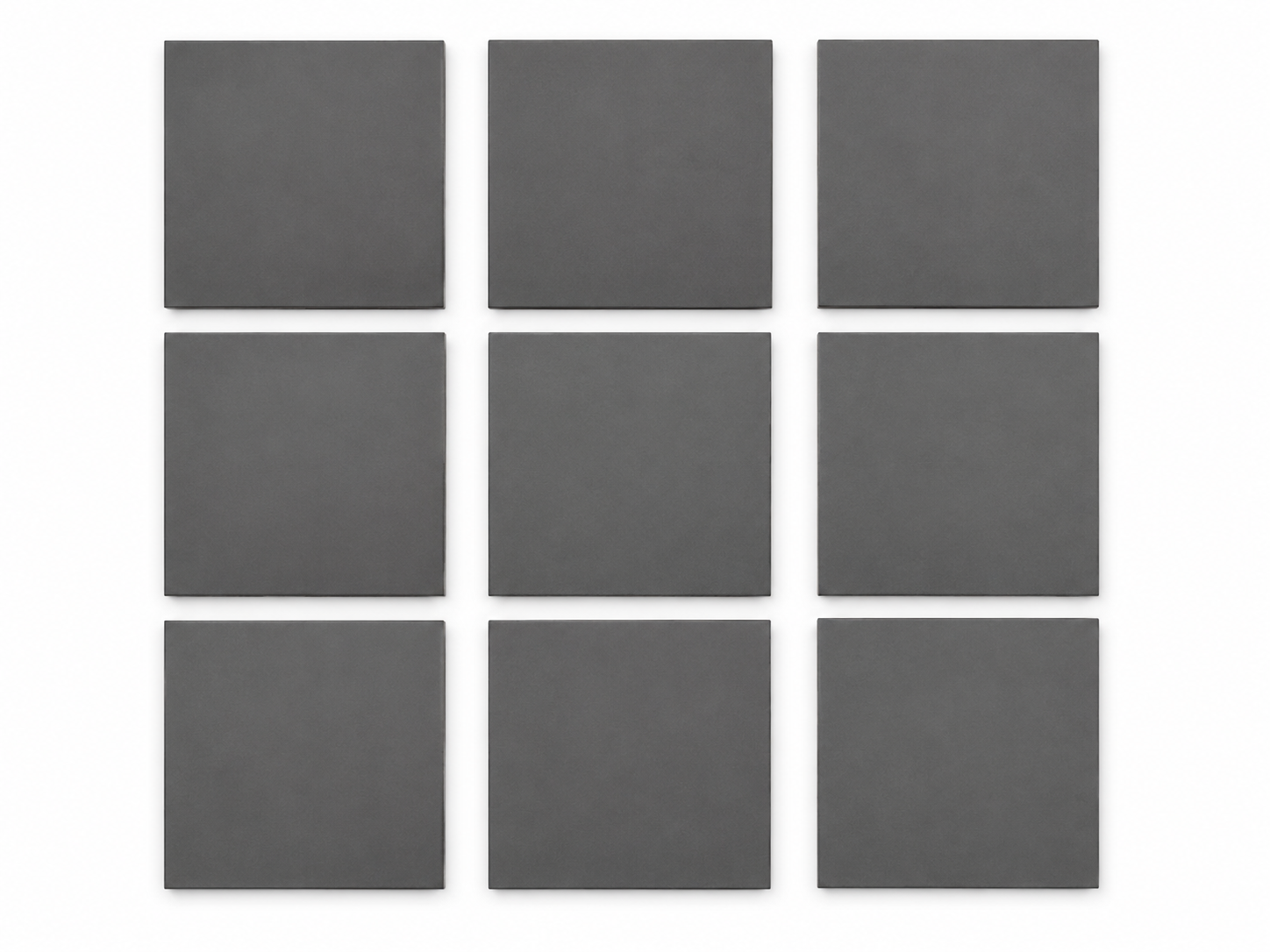

Custom Plates & Geometries
Square plates and other custom geometries reviewed by drawing and specification.
Current plate size rangeLength 1–70 mm · Width 1–30 mm
Thickness0.1–10 mm
Custom reviewOther dimensions / geometries subject to technical feasibility
PROCESSING OPTIONS
From Oriented Crystal to Finished Component
Cut & Orientation
(001), (011) and application-specific poling configurations.
Grinding & Lapping
Precision dimensional processing based on component requirements.
Polishing
Polished surface states for application-specific integration.
Electrodes
Silver and gold electrode options.
From prototype quantities to production volumes.
Send your material, geometry and performance requirements for technical review and quotation.
