PMN-PT

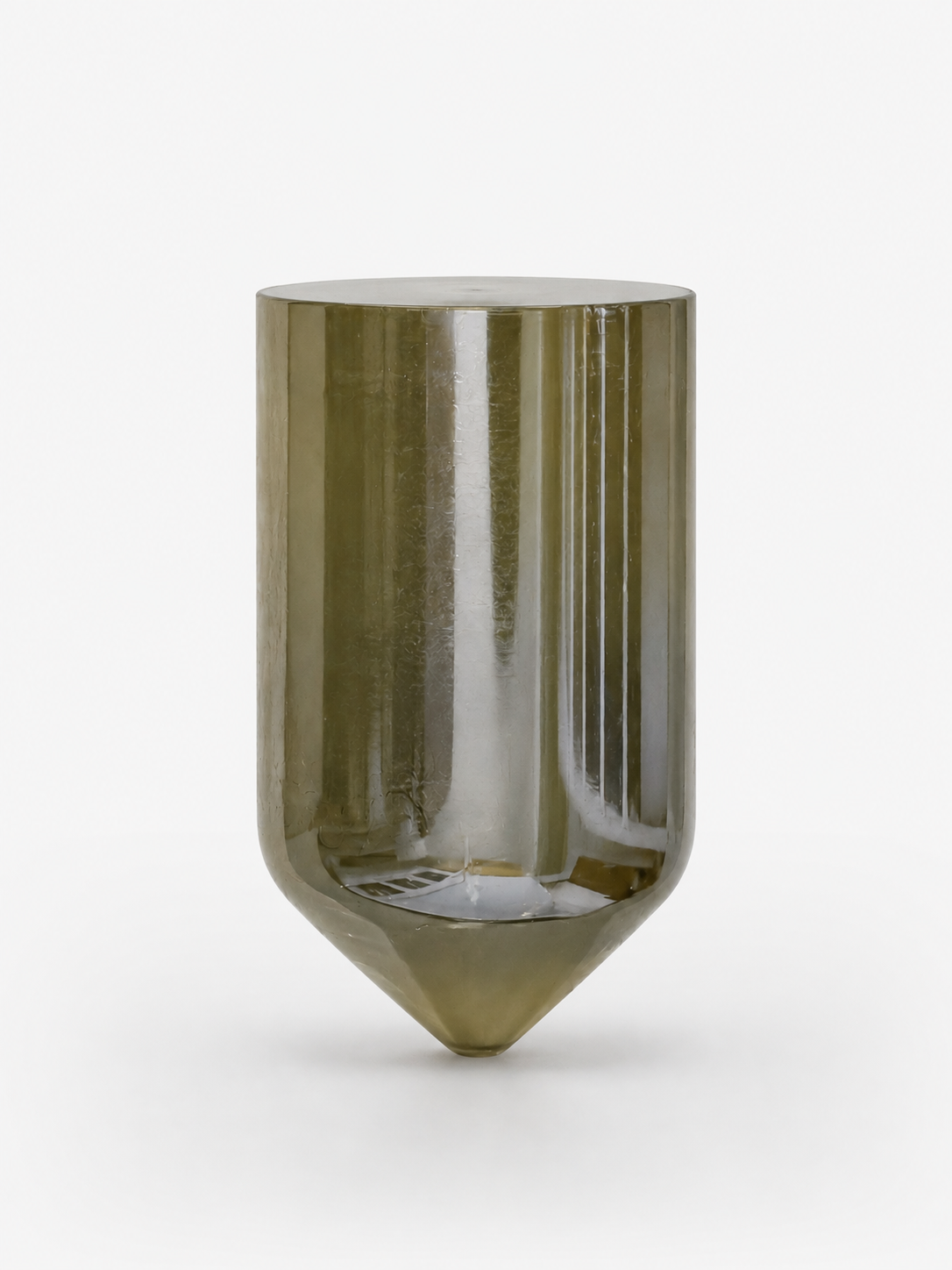

PMN-PT Single Crystals
Type I and Type II grades with (001)- and (011)-cut configurations.
Explore PMN-PT →Home / Products
PRODUCTS
Piezoelectric Single Crystals
Explore PMN-PT, PIN-PMN-PT and Mn:PIN-PMN-PT material families, then select custom cut, geometry, finish and electrode requirements.

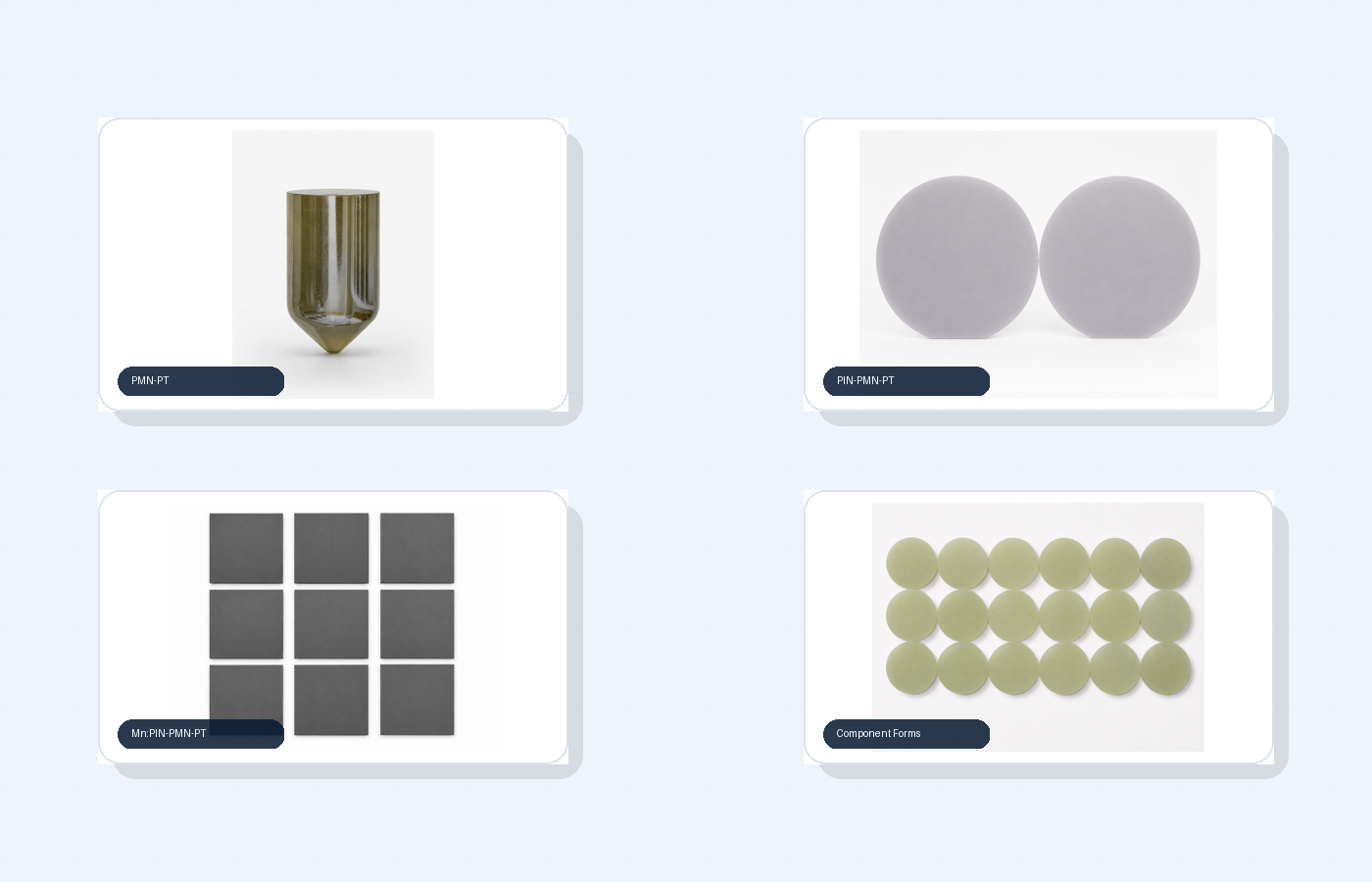

Integrated sample product photography
PIN-PMN-PT
PIN-PMN-PT Single Crystals
Type I and Type II grades for applications needing strong response and elevated temperature capability.
Explore PIN-PMN-PT →
Mn:PIN-PMN-PT
Mn:PIN-PMN-PT Single Crystals
Mn-doped grades with low dielectric loss and high Curie temperature ranges.
Explore Mn:PIN-PMN-PT →CUSTOM COMPONENTS
Choose the Material. Specify the Component.
Plates, wafers, rings, rods and custom geometries can be reviewed against your drawing and performance requirements.
Representative component forms
Current plate size rangeLength 1–70 mm · Width 1–30 mm · Thickness 0.1–10 mm
Surface statesFine grinding · Polished
Electrode optionsSilver · Gold
From prototype quantities to production volumes.
Send your material, geometry and performance requirements for technical review and quotation.
